LIGHTWEIGHT
Powerful

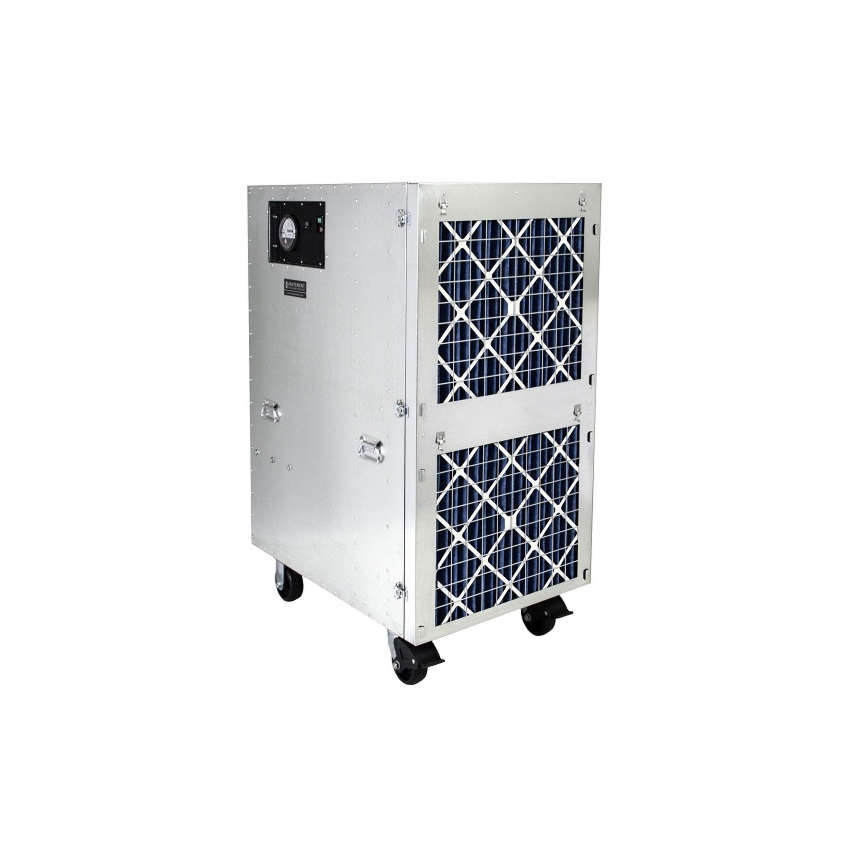

HEPA-AIRE® PAS5000 Portable Air Scrubber

  • Peak airflow of up to 4,000 cfm
  • Can provide 6+ ACH in containment areas @ 35,000 - 40,000cu ft³
  • Dual 2,000 cfm HEPA filters provide 99.97%+ efficiency
  • Portable and durable



Download Product Info



Air Change Calculator

$0.00
In stock
SKU
PAS5000
PAS5000

The Most Powerful Portable Air Scrubber Available for Large Restoration, Construction and Demolition Projects is Now Smaller and 63 lbs. Lighter Providing Added Mobility with the Same Exceptional Performance!

The new PAS5000 Portable Air Scrubber from Abatement Technologies® has been redesigned to be smaller, lighter and more portable than ever before. With peak airflow of up to 4,000 cfm, the PAS5000 can typically provide 6+ ACH in containment areas as large as 35,000 to 40,000 cubic feet. The new PAS5000 is engineered to take on the largest industrial and commercial air cleaning applications.

High-Efficiency HEPA Air Purification

The dual 2,000 cfm HEPA filters in the PAS5000 are 100% tested and certified to provide efficiency of at least 99.97% @ 0.3 microns, in accordance with stringent IESTRP-CC001-4 requirements. Critical internal seams are sealed with neoprene gaskets to prevent bypass.

Hefty features that make the PAS 5000 uniquely qualified for large spaces include:

  • Power Plus - Strong, five-horsepower single-phase motor delivers up to 4,000 cfm of peak airflow yet draws 21 amps or less on a 230 V/30 amp/60 Hz electric supply
  • Durability - Tough, galvanized 20 gauge steel cabinet with strong and secure aircraft-type solid rivet fasteners
  • Mobility - Narrow, 26.5”-wide upright cabinet with four extra heavy-duty, 5” diameter by 2”-wide casters (2 fixed and 2 locking swivels)
  • Particulate Pre-Filter - 2” pleated particulate pre-filters capture particles and extend the life of the HEPA filter. (Standard in all units)
  • Optional Odor Adsorption Carbon Filters - VAPOR-LOCK® high-capacity granular carbon pre-filters capture gases and odors. (Order carbon filters separately)
  • HEPA Efficiency - Dual 2,000 cfm HEPA filters are 100% tested and certified to provide 99.97%+ efficiency @ 0.3 microns
  • Safety FirstThe PAS5000 has been independently tested and certified in accordance with applicable UL and CSA safety requirements
Dimensions (L x W x H)
44.5" x 26.5" x 59.5"
Airflow
4,000 cfm (with clean filters)
Net Weight With Filters
395lb
Shipping Weight
456 lb
Power Supply Requirements
230 VAC, 60 Hz, single phase, 30 A circuit
Cabinet Material
Galvanized steel and assembled with solid rivets. Critical seams are sealed
Pre Filter Access
Hinged access door secured by rotating latches
Stage 1 pre-filter
2 pleated particulate pre-filters (H2002)

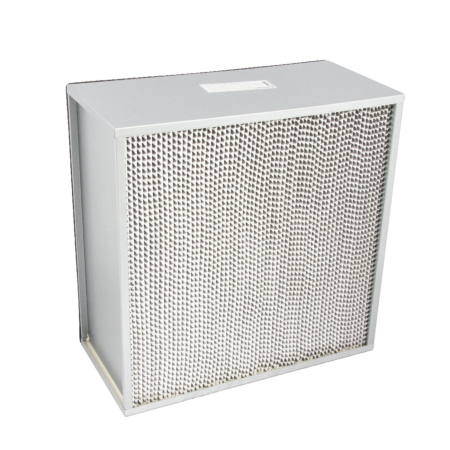

Final stage HEPA filter
(2 each) Tested and certified to an efficiency of 99.97% or higher against 0.3 micron size particles (H2010)
Motor Blower
Belt Driven, 5 hp, 60 Hz, single phase
Operational Sound Level
76 - 86 dB @ 5 feet
Transportability
4 handles mounted to cabinet
Amperage
21 A or less
Optional Particulate Pre-Filter
(2 ea) 24 x 24 x 1 prefilter pad (H2001)
Alternative_1st_Stage_Pre_Filter
(2 ea) high capacity carbon filters (VL2024)
Automatic Restart
Yes
Carrying Handles
Yes
Casters
yes, 4 (2 locking swivel, 2 fixed)
