Modes of Operation Infographics

Versatile Modes of Operation Infographics for HEPA-CARE Air Purification Systems

Abatement Technologies® HEPA-CARE® Portable and Ceiling-Mounted Air Purification Systems are designed to operate 24/7 and can be installed in a number of configurations; with or without UV modules.

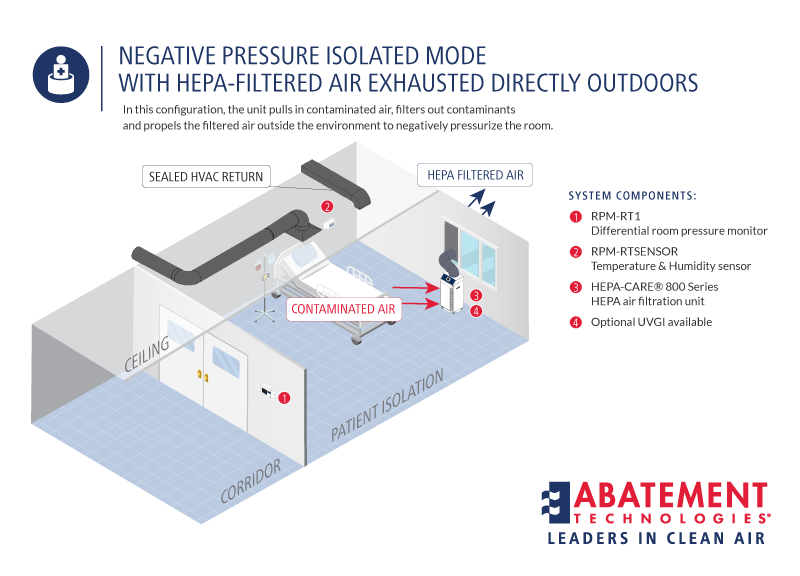

Negative Pressure Isolated Mode with Hepa Filter air exhaust outside




Negative Pressure Isolated Mode with UV Module and Indoor Exhaust

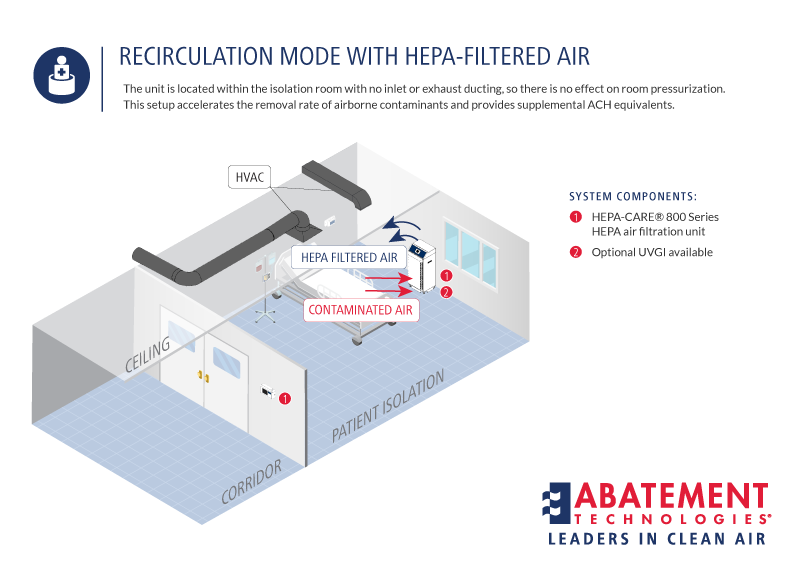

patient isolation recirculation mode with hepa filtered air




Hepa filtered air exhausted indoors and outdoors




positive pressure mode with uv module and indoor exhaust
